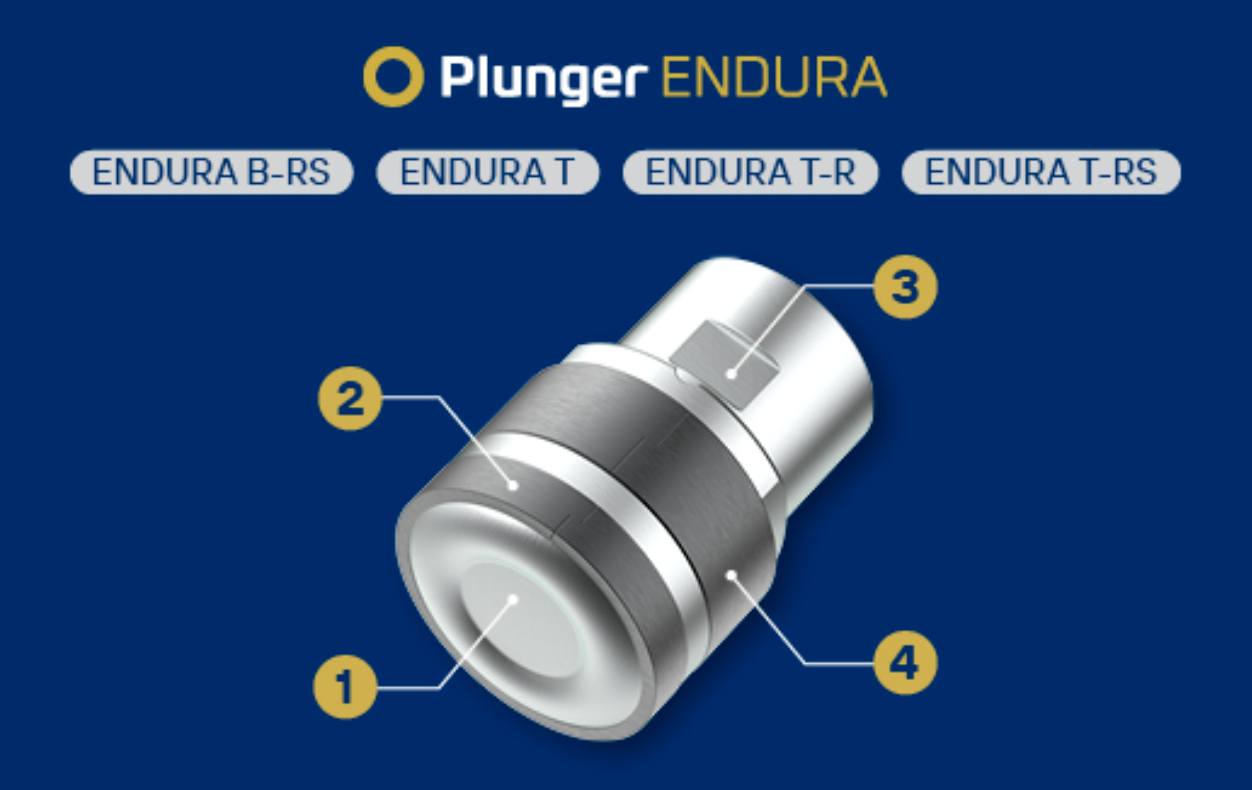

Endura B Plunger

  • The optimal combination of durability and thermal performance
  • Patented with a special design and cooling channel configuration that ensure optimal cooling during the injection process.
  • High-strength hot work steel body
  • Special bayonet locking design
  • Frontal ring included for optimal sealing between sleeve, plunger and a spring bush (back ring) - for vacuum application
  • Available in 2 versions:
    • Endura B-RS: Standard version with frontal ring and spring bush.
    • Endura B-RS/BN: Bullet nose version with frontal ring and spring bush.

HTS DIFFERENCE

INNOVATIVE TECHNOLOGY

Based on MFT™ and DED technologies we produce components with conformal cooling / flow design and mechanical properties of a forged tool steel block.

SUPERIOR PERFORMANCE

iTherm® components have a big impact on cooling and material flow, resulting in shorter cycle times, higher cast/moulded part quality and subsequentially also productivity.

SOLUTION ORIENTED

Years of experience and R&D of HTS Group companies, combined with leading OEM customer partnerships gives us knowledge and capacity to help you improve your productivity.

Advantages over conventional plunger

Easy assembly with tolerance for misalignment

The coupling of plunger and holder is done using our special bayonet locking system, which allows slight misalignments during assembly, providing a seamless and forgiving integration process compared to traditional lock systems. This design ensures a reliable connection between the plunger and holder.

Cycle time reduction

The optimized cooling design within the Endura B plunger ensures efficient and even cooling, significantly reducing cycle times. This leads to more efficient and homogenous cooling and faster solidification of the biscuit without compromising quality.

Additionally, the ring's assembly and removal is quick, and can be done directly on the machine, minimizing downtime.

Longer lifetime

The Endura B plunger assembly with its holder is designed for durability: the holder itself rests against the inner surface of the plunger absorbing the total injection pressure and avoiding cracks and fatigue.
Endura B plunger achieves a longer lifetime compared to copper-made plungers because of less dilatation. Copper dilatation equals 17-6, while in the case of high-strength hot work steel, the expansion is up to 11-6.

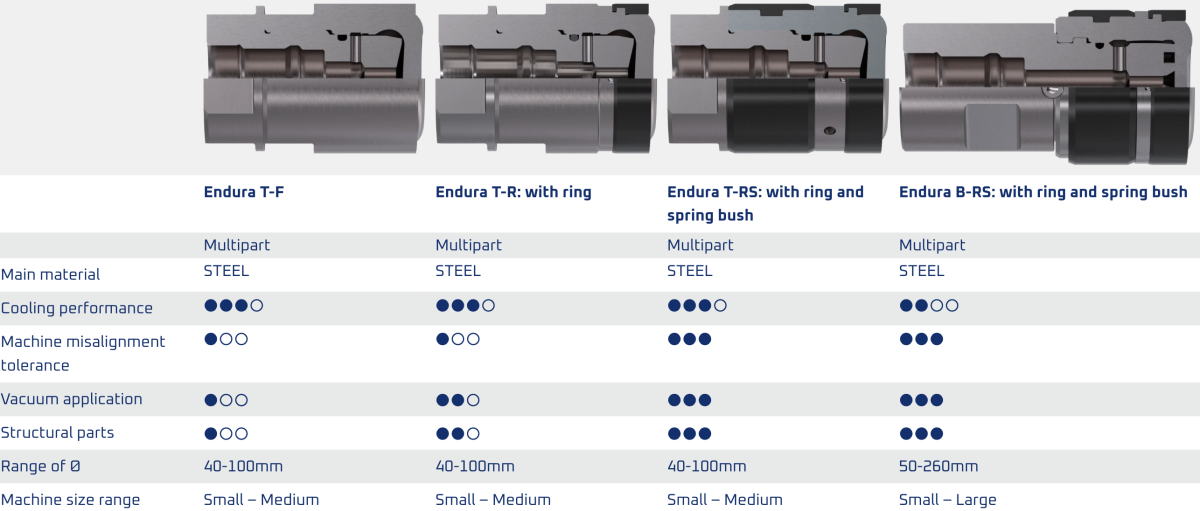

PLUNGER COMPARISON

Endura B plunger model range

Endura B-RS:

MACHINE TYPE
all machine sizes,
50 – 260 mm (2,00“ up to 10.20“)

APPLICATION
all applications / structural parts



Endura B-RS/BN (BULLET NOSE)

MACHINE TYPE
all machine sizes,
50 – 260 mm (2.00“ up to 10.20“)

APPLICATION
all applications / structural parts









PARAMETERS

DIMENSIONAL RANGE

Diameter 50 - 260 mm (2.00" - 10.20")

MATERIAL

Endura B-RS plungers are made using forged or rolled tool steel bars produced in EU.

Plunger rings

We manufacture a selection of plunger rings and spring bushes for Endura B model plungers. Read more

Downloads

Product Data Sheet

Read more detailed product information about the plunger series.



iTherm® conformal cooled shot blocks are cooling quicker and more equally across the working surface, shortening biscuit solidification time.

LOOKING FOR FASTER BISCUIT SOLIDIFICATION? →

Our innovative rod spray lubrication system which lubricates the sleeve across the whole length will prolong the sleeve and plunger lifetime.

DON'T FORGET ABOUT LUBRICATION →
