innoSleeve Solution

innoSleeve is a cutting-edge and environmentally friendly shot sleeve solution designed to reduce sleeve expenditures by up to 40%, minimize production downtimes, and ensure your manufacturing process runs smoothly and efficiently

The key to the high effectiveness of
innoSleeve solution is the replaceable innoSleeve insert.

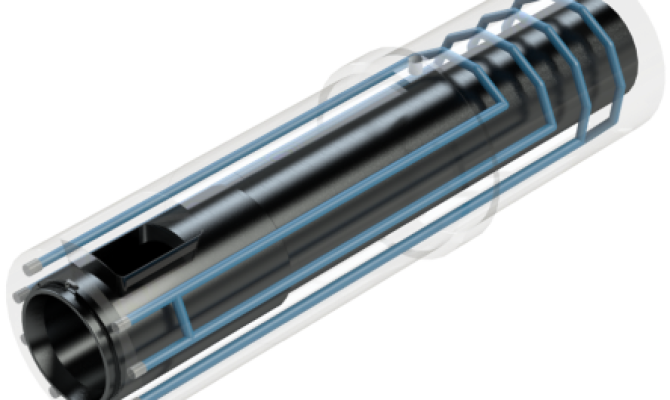

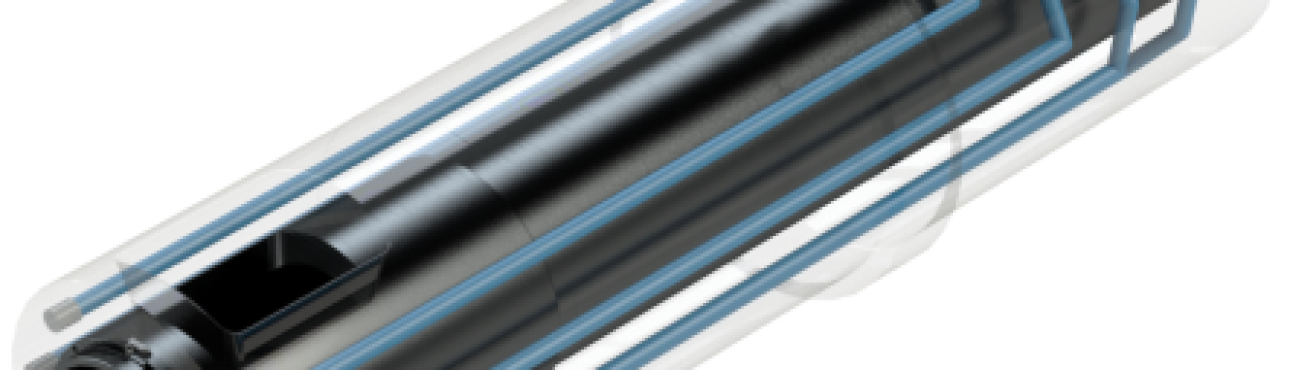

The innoSleeve solution includes an insert that shields the sleeve across the complete diameter and length - minimizing warpage, erosion, and wear, ultimately extending the average lifespan of sleeves by up to 30%.
This results in fewer sleeve replacements and fewer inserts used, leading to lower overall shot sleeve expenditures.
innoSleeve generates up to 70% less CO2. This way we are supporting our die-casting customers’ efforts to decrease their environmental footprint.
innoSleeve insert can be replaced in the machine.
The time saved on replacement ensures substantially shorter production stoppages.
For each innoSleeve produced, we plant a tree to neutralize its CO2 footprint.

Innosleeve production reduces CO2 emissions by up to 70%, compared to regular shotsleeves. But CO2 reduction is just one side of the coin. We support the restoration of the ecosystem by planting more trees, donating from each innoSleeve we produce.

Therefore, for every new innoSleeve and innoSleeve insert produced, we plant trees to completely neutralize its CO2 footprint. What is more, our customers receive a tree certificate for each of the trees we plant in their name!

Lower Sleeve Expenditures
Only the Insert Needs Replacing

When the insert wears out, it is easily replaced with a new one while the sleeve remains in operation.

The difference in usage between the innoSleeve solution and the conventional shot sleeve is that with innoSleeve the cost of envelope occurs only once, when the solution is implemented and then, for each next replacement, only the insert needs to be replaced with a new one, while the envelope remains unchanged. Resulting in fewer and faster replacements and substantially lower expenditures.

Extended insert lifespan
Specially developed alloy

The innoSleeve insert/liner is crafted using a specially developed alloy that enables us to achieve a nitration layer hardness of up to 1,250 Hvickers.

This surpasses traditional shot sleeves made from 1.2243/H11 or 1.2344/H13 alloys by 25%. This significant difference in hardness results in a substantially longer lifespan—up to 55% longer than conventional sleeves.

Reduced Production Downtime
Faster, fewer replacements

Usage of innoSleeve reduces not only the frequency of replacements, but also the time it takes to complete the replacement.

The replacement of InnoSleeve insert is in most cases done on the machine, so it is 20% quicker than the replacement of the whole shot sleeve, significantly minimizing production stoppages.

The replacement is done without the need to dismantle it from the machine, using a specialized tool provided by us.

parameters innosleeve

Dimensional range

Inner diameter 50 - 210 mm

Length 200 - 1.600 mm



Lubrication

Depending on operation requirements, shot sleeve can be adjusted for various lubrication options

  • Lub drop

  • Combi lub

  • Tube lube

  • Groove lube

Material

innoSleeves are made using forged or rolled tool steel blocks produced in EU.

Integral inserts can be made of three different material choices, 1.2343 / 1.2344 or by using one of the two specially developed tool steel grades.

Delivery condition

heat treated

hardness between 42 and 50 HRC

machined to final dimension

nitrided

parameters innosleeve insert

TYPES OF INSERTS

FIXING OPTIONS



Dimensional range

Inner diameter 70 - 210 mm

Length 200 - 1.600 mm

Mounting options

Based on the type of the sleeve, different mounting options can be used

  • cap

  • clamps

  • seeger ring

Material

Integral inserts can be made of three different material choices, 1.2343 / 1.2344 or by using one of the two specially developed tool steel grades.

Delivery condition

heat treated

hardness between 42 and 50 HRC

machined to final dimension

nitrided

Downloads

You can find more detailed information in the downloadable datasheets.
