Sprue Bush

Standardized conformally cooled sprue bush with configurable dimensional features for fast adaptation to cavity-side configurations.

Key features and benefits

Tool steel material

Made from premium, industry-approved tool steel grades produced in the EU.

Reduced cycle time

Improved heat extraction at the alloy entry point accelerates solidification and time to die closure.

No leakage

Utilizes a single inlet and outlet, effectively eliminating leakage points and simplifying the cooling circuit.

Extended lifetime

Reduced thermal fatigue and soldering extend the operational lifespan of the sprue bush.

Better Melt Control

Stable sprue temperatures minimize turbulence, gas entrapment, and surface defects.

iTherm® Sprue Bush

Selected examples from our range

  • Configurable models in HTS standardised diameters and tolerances

  • Fully custom sprue bush – engineered to application-specific requirements

  • Manufactured according to customer drawing or developed with the HTS engineering team

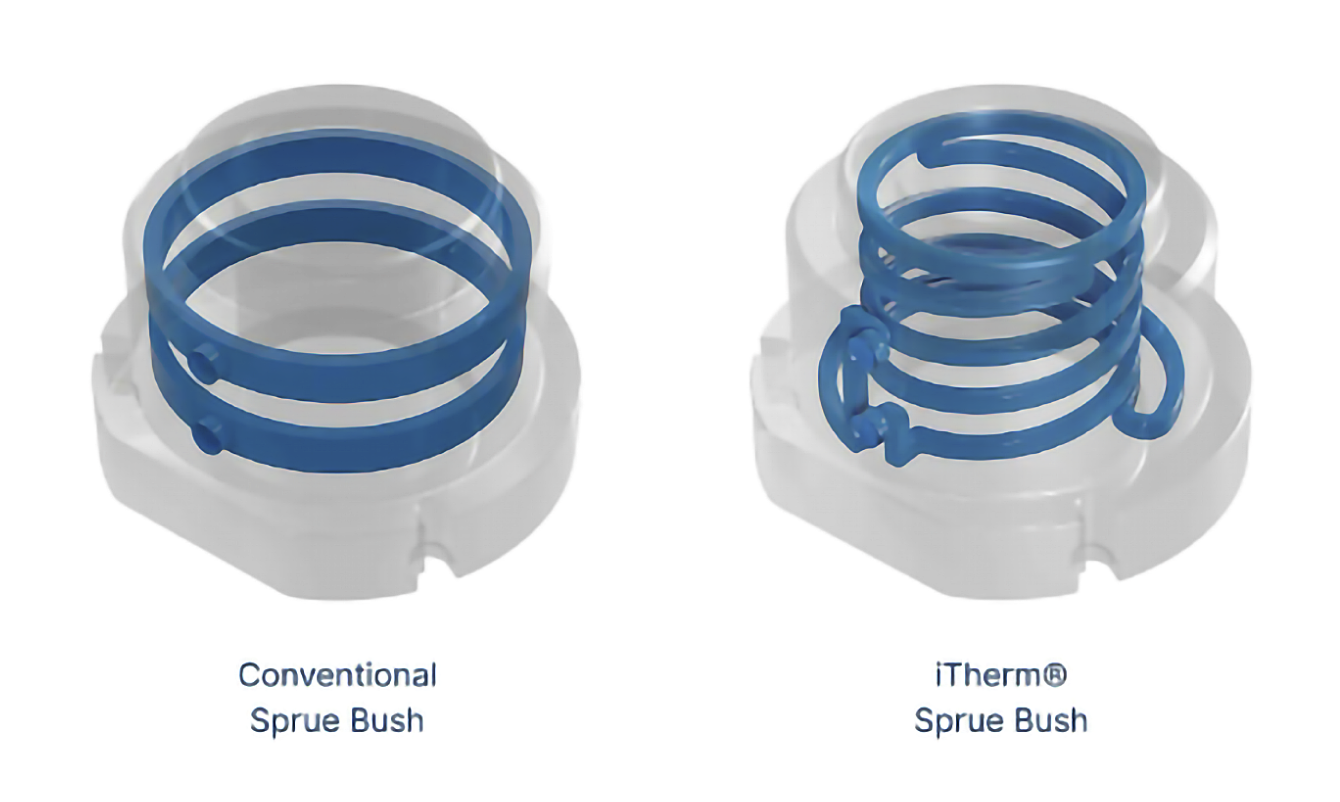

Superior conformal cooling design

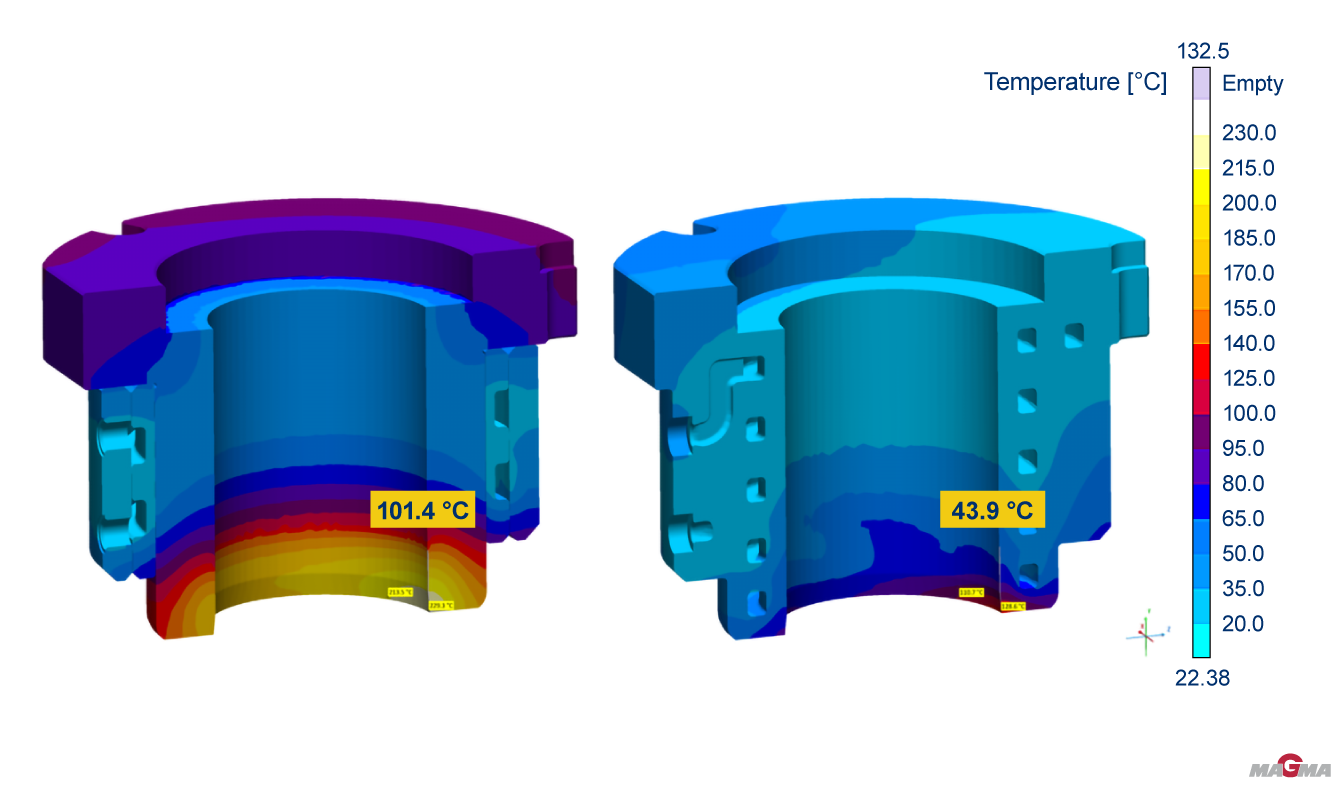

Uniform Heat Distribution

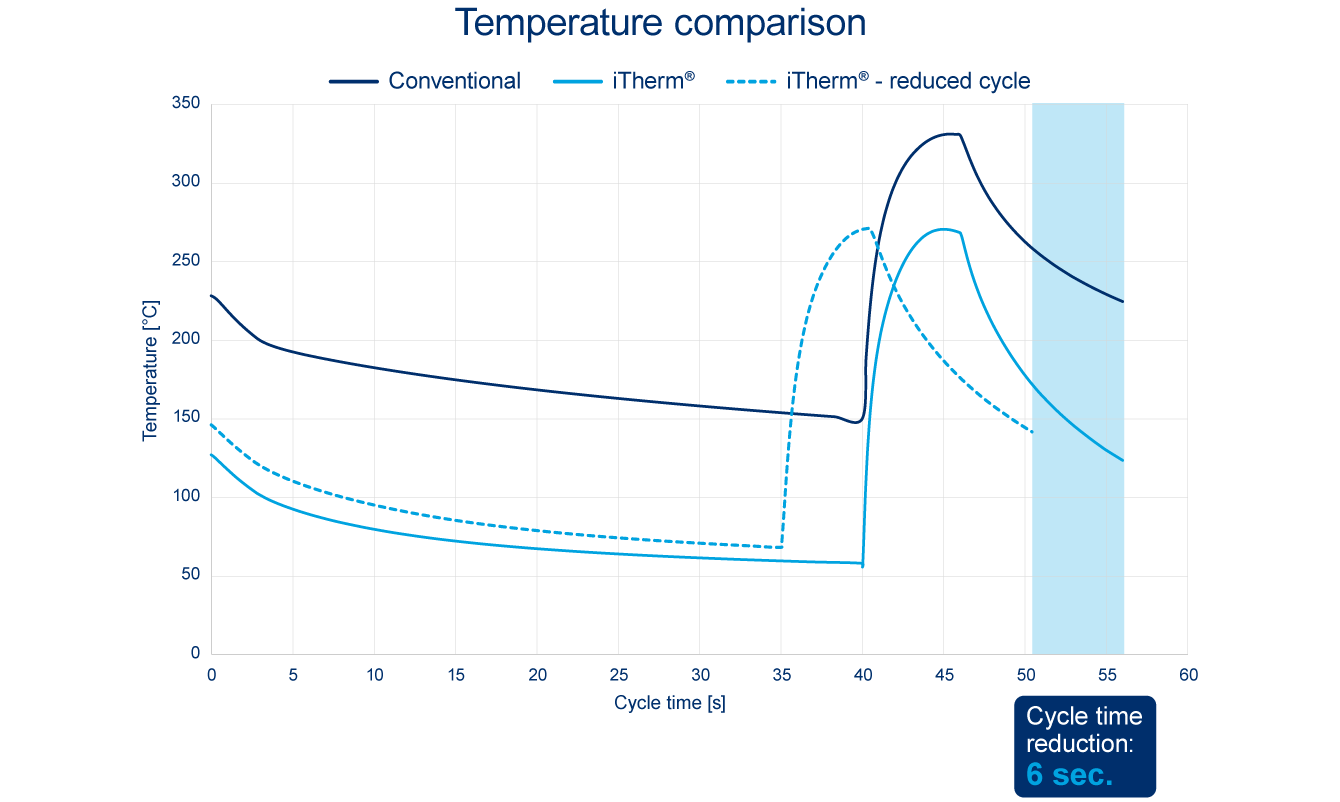

Cycle Time Reduction

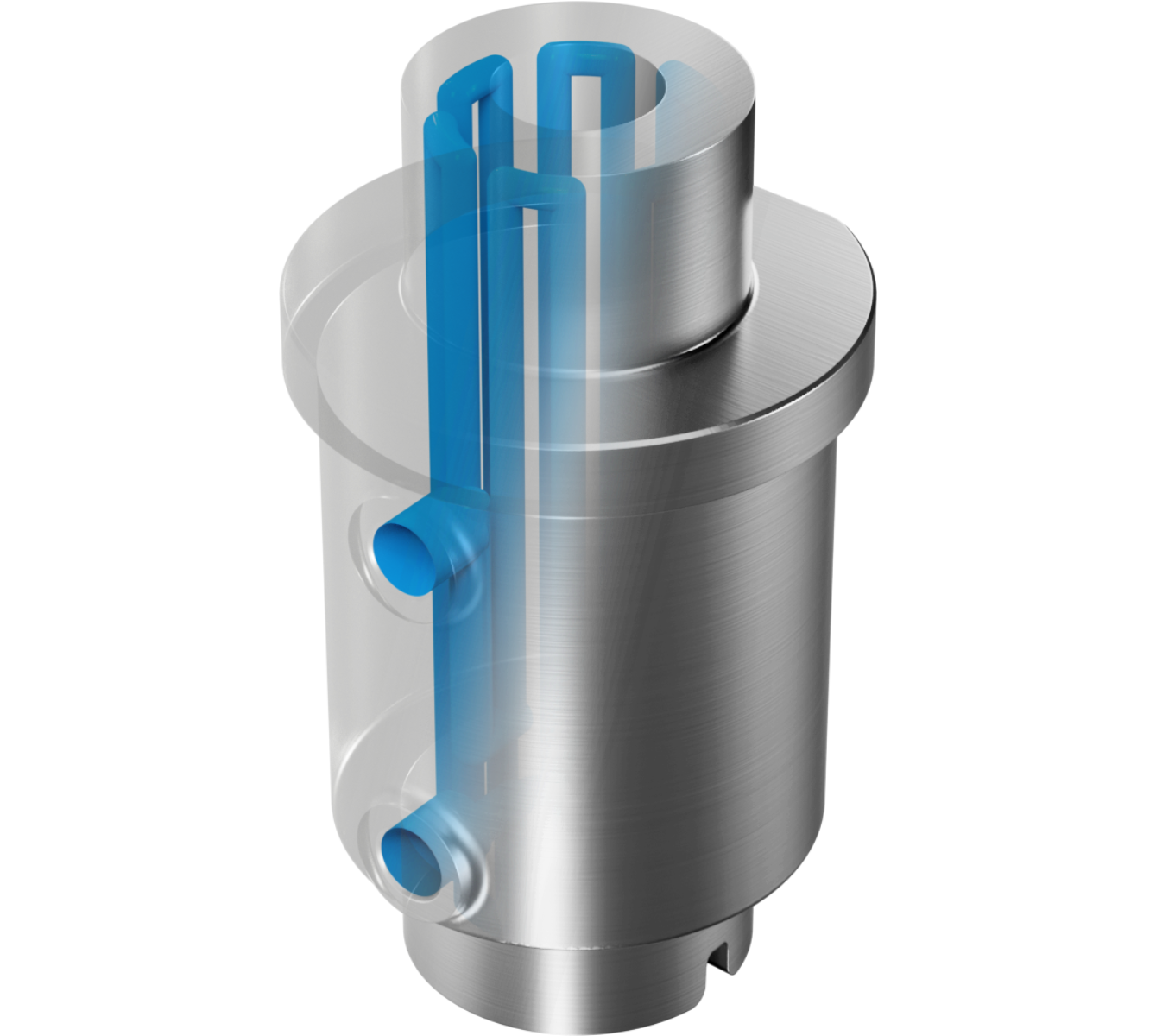

iTherm® Sprue Bush

DIMENSIONS (mm)    HEIGHT 104    DIAMETER 115    WEIGHT 2.7 kg   Technology DED

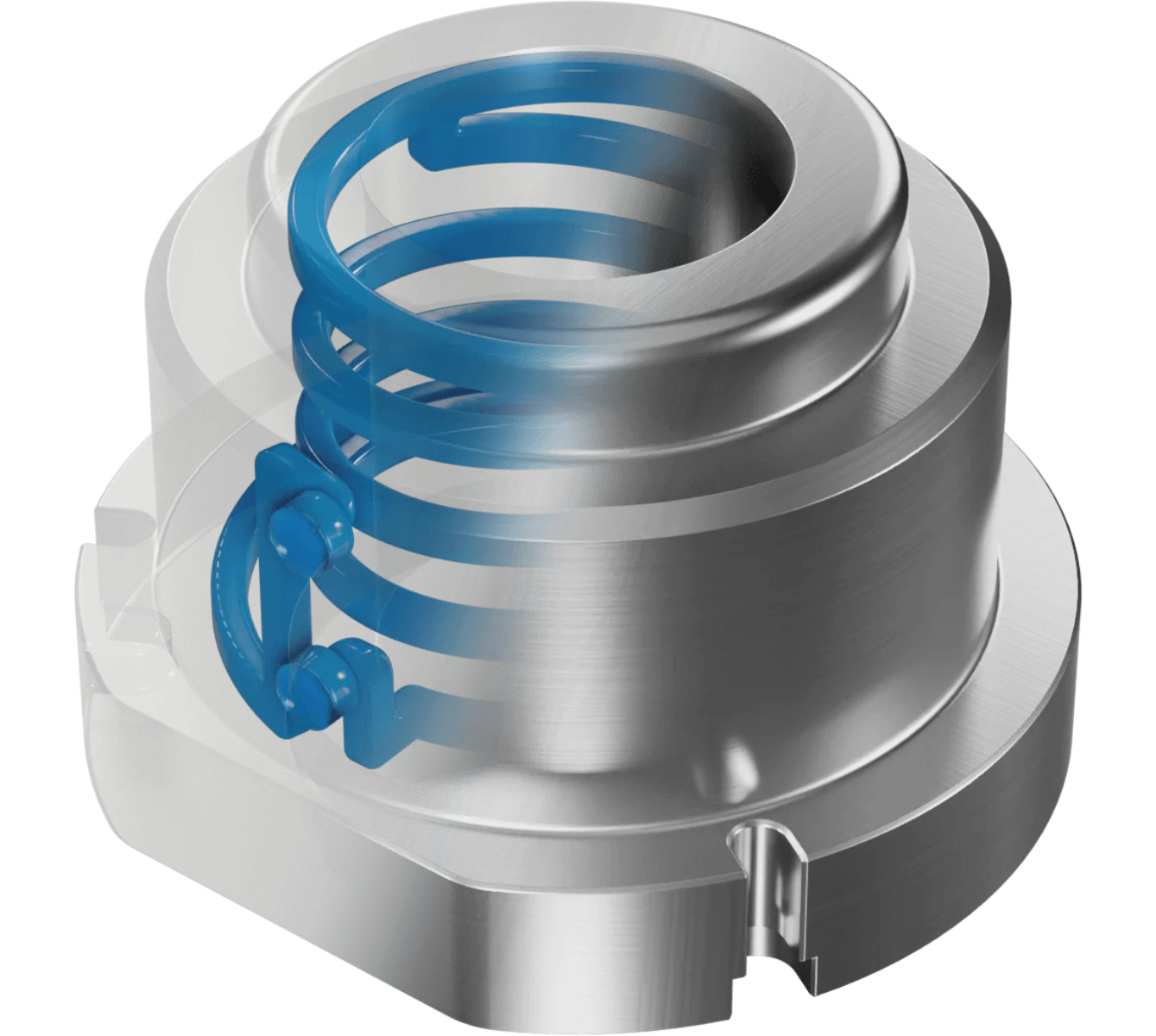

iTherm® Sprue Bush

DIMENSIONS (mm)    HEIGHT 174    DIAMETER 126    WEIGHT 10.2 kg   Technology DED

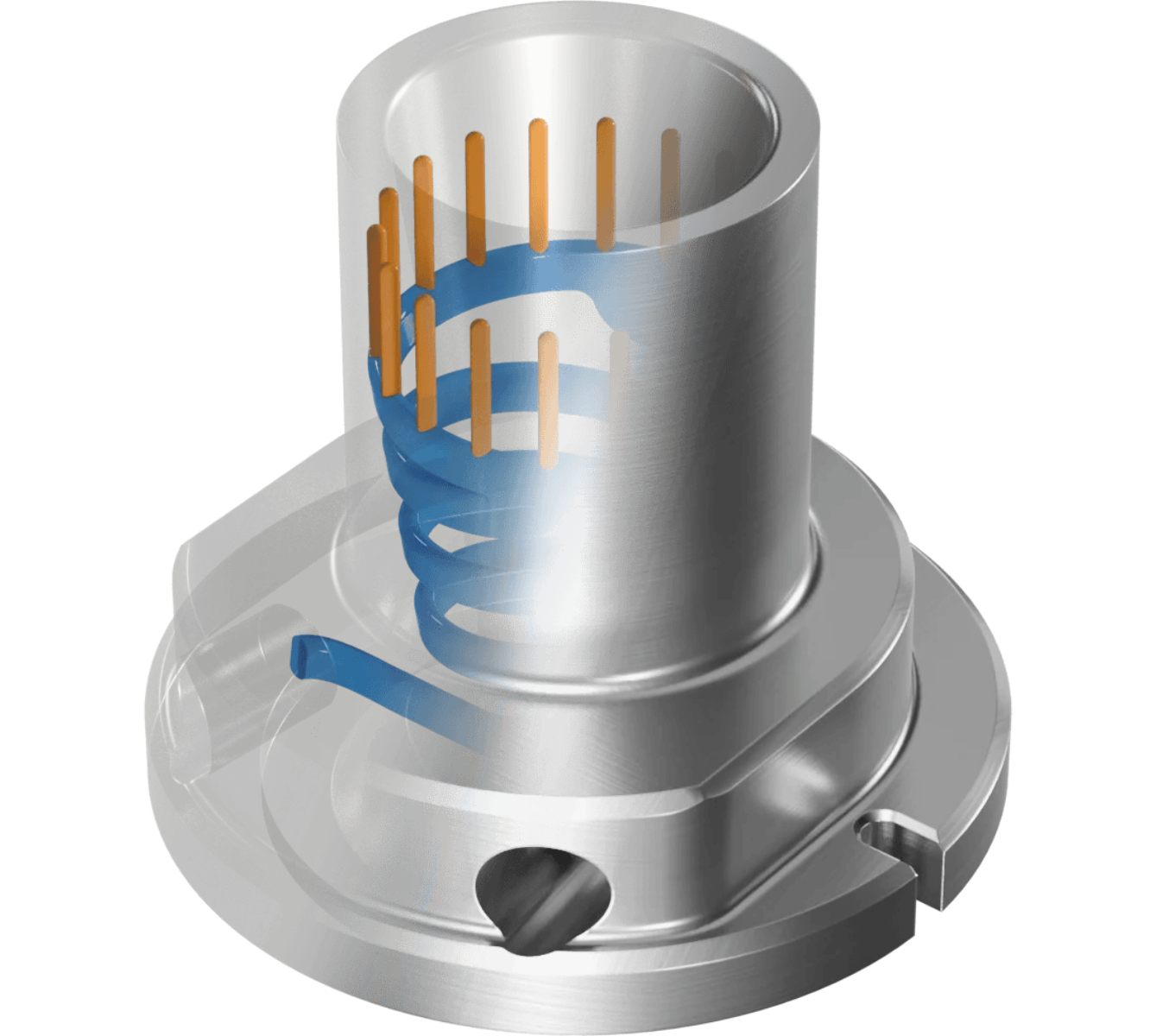

iTherm® Sprue Bush

DIMENSIONS (mm)    HEIGHT 240    DIAMETER 138    WEIGHT 15.3 kg   Technology DED/SLM

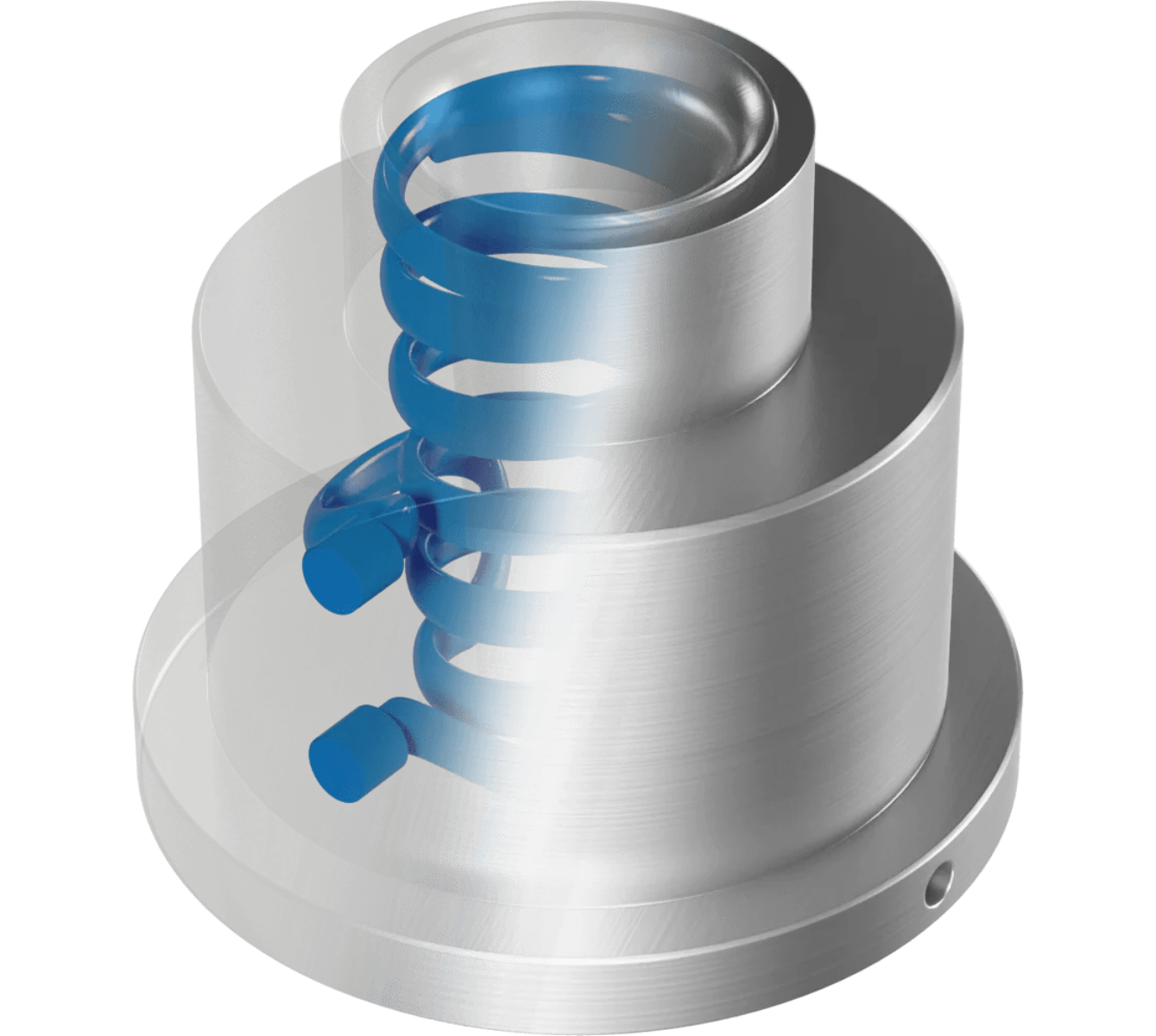

iTherm® Sprue Bush

DIMENSIONS (mm)    HEIGHT 147    DIAMETER 223    WEIGHT 22.2 kg   Technology DED

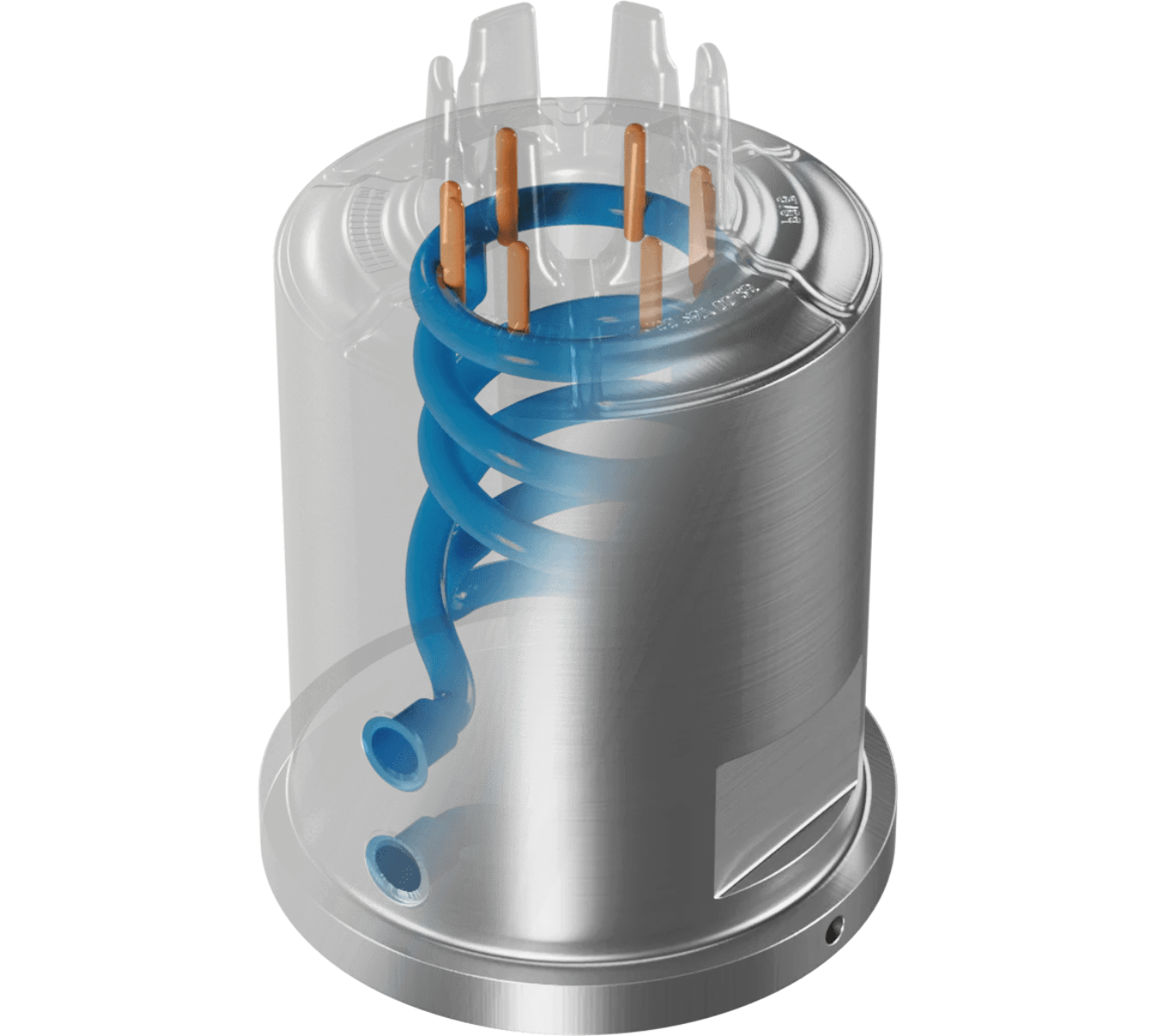

iTherm® Sprue Bush

DIMENSIONS (mm)    HEIGHT 189    DIAMETER 114.3    WEIGHT 8.5 kg   Technology DED

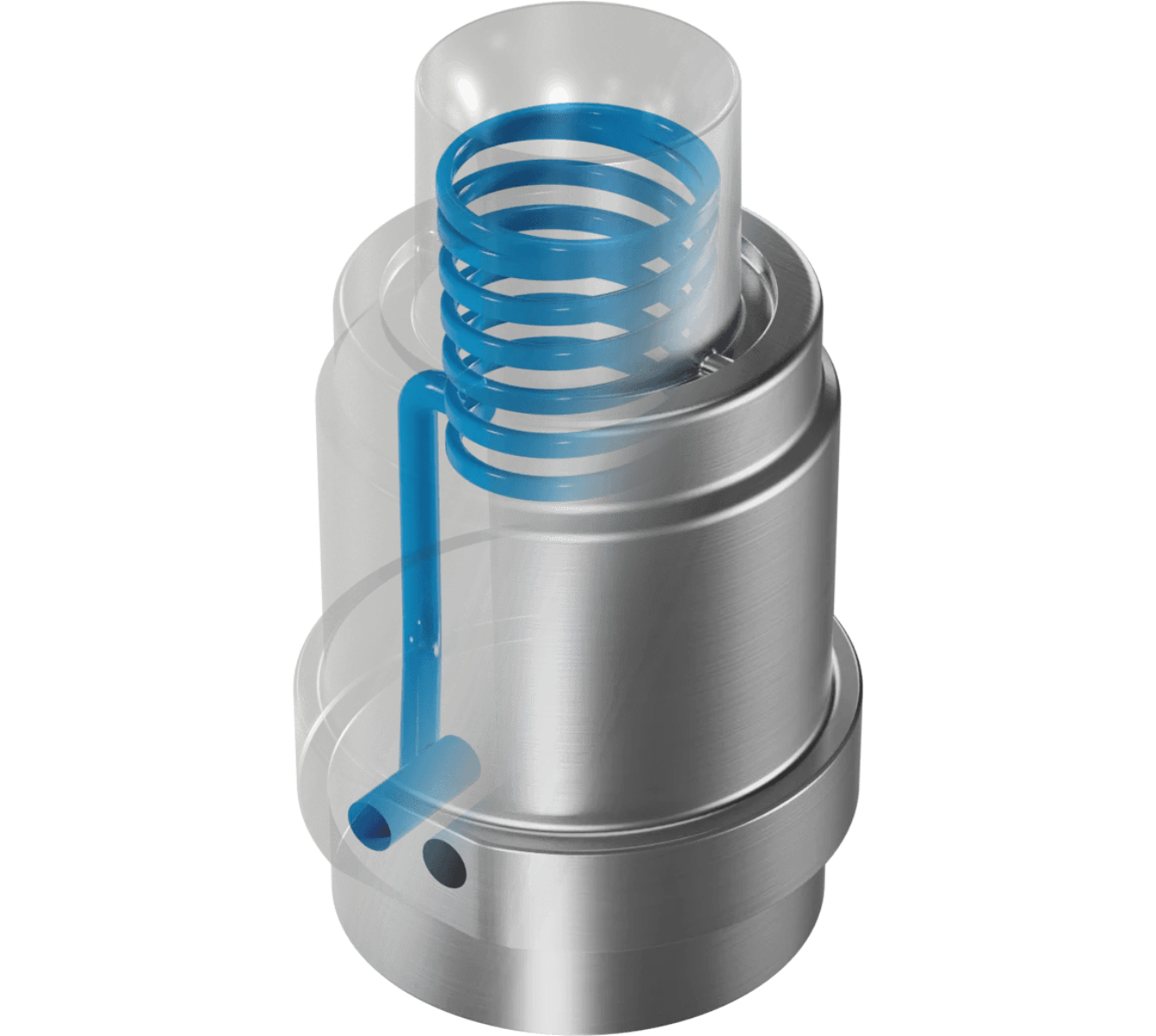

iTherm® Sprue Bush

DIMENSIONS (mm)    HEIGHT 95    DIAMETER 112    WEIGHT 3.5 kg   Technology DED

Configure your iTherm® Sprue bushing online

We have developed an online configurator that helps you configure the parameters of iTherm® Sprue bushing according to your specific requirements.

ONLINE CONFIGURATOR

We have a patented solution to prolong sleeve lifetime by up to 55%, at a lower cost than the conventional sleeve.

LOOKING TO EXTEND SHOT SLEEVE LIFETIME? →

Our innovative rod spray lubrication system which lubricates the sleeve across the whole length will prolong the sleeve and plunger lifetime.

DON'T FORGET ABOUT LUBRICATION →

Downloads

Product Data Sheet

You can find more detailed information in the downloadable datasheets.
