SINOXX 4125
This is a high carbon martensitic stainless with moderate corrosion resistance, good strength and the ability to obtain and keep excellent hardness (HRC 60), and wear resistance.
DESIGNATION BY STANDARDS
AISI: 440C
EN: 1.4125
DESCRIPTION
- High carbon martensitic stainless steel.
- Moderate corrosion resistance.
- Obtains and keeps excellent hardness (HRC 60), and wear resistance.
CORROSION RESISTANCE
- Fresh water
- Steam
- Petroleum products
- Alcohol
not recommended for temperatures above 400 °C
APPLICATIONS
Ball bearings and races, gage blocks, molds and dies, cutlery, valve components, knives, measuring instruments.
MACHINABILITY
- Best machined in the annealed condition.
- Carbide or ceramic tooling is recommended.
WELDABILITY
- Not commonly welded due to its tendency to air harden.
- If welding is required, preheat and post weld treatment is required.

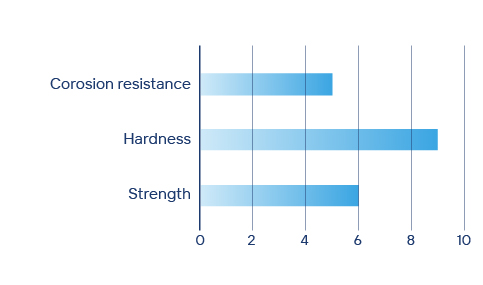

SPECIFICATIONS
-
Corrosion resistance: 5/10 – Moderate protection against rust
-
Hardness: 9/10 – Very high durability and wear resistance
-
Strength: 6/10 – Solid performance for most applications
Designation by standards
| Brand name | Ravne | Mat. No. | DIN | EN | UNS |
| SINOXX 4125 | PK348 | 1.4125 | - | X105CrMo17 | 440C |
Chemical composition (in weight %)
| C | Si | Mn | Cr | Mo | Ni | V | W | Others |
| 1.08 | max 1.0 | max 1.0 | 17.0 | 0.60 | - | - | - | - |
